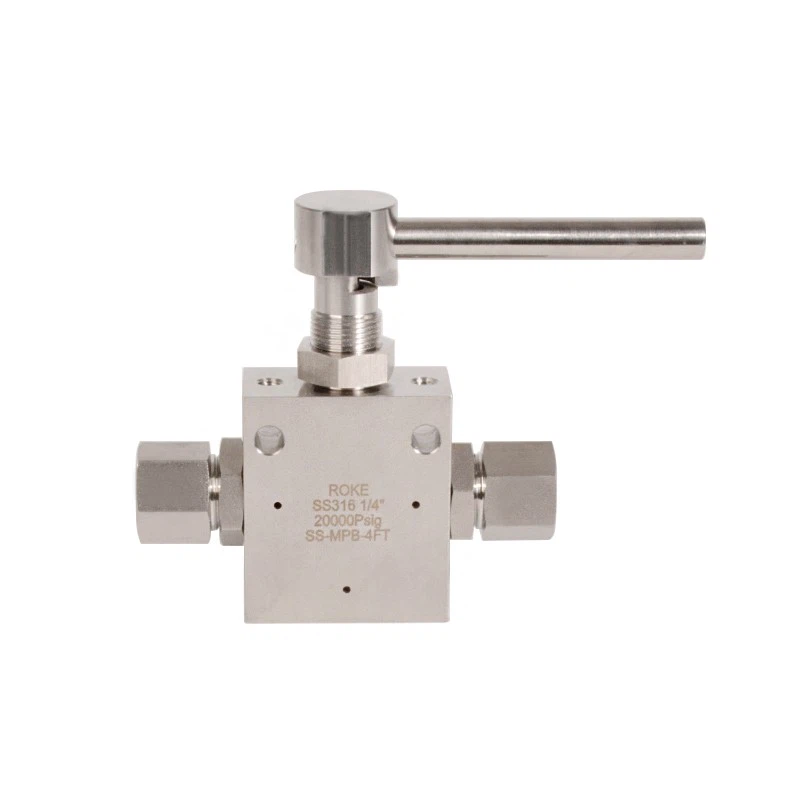

Katup bola tekanan sedang

2- cara

Bagian TIDAK.

Lubang

Di dalam.

Dimensi di. (Mm)

A

B

C

D

F

G

H

J

K

L

M

MemblokirThk

Ss-mpbvf 4-

1/4

4.09

(104)

4.19

(106)

2.00

(50.8)

3.33

(84.5)

1.13

(28.6)

1.50

(38.1)

0.75

(19.1)

0.43

(10.9)

0.28

(7.1)

2.31

(58.6)

/

1.00

(25.4)

Ss-mbv-f 6-

3/8

4.84

(121)

5.53

(140)

3.00

(76.2)

4.96

(126)

1.38

(34.9)

2.00

(50.8)

1.00

(25.4)

0.41

(10.3)

0.28

(7.1)

2.95

(74.9)

/

1.38

(34.9)

Ss-mbv-f 8-

1/2

5.39

(137)

7.73

(196)

4.12

(105)

/

1.66

(42.2)

3.00

(76.2)

1.50

(38.1)

0.50

(12.7)

0.28

(7.1)

3.52

(89.4)

/

1.75

(44.5)

3-jalan

Bagian TIDAK.

Lubang

Di dalam.

Dimensi di. (Mm)

A

B

C

D

F

G

H

J

K

L

M

MemblokirThk

Ss-mbv-f 3-3 w-

3/16

5.00

(127)

4.69

(119)

2.50

(63.5)

3.33

(84.5)

1.13

(28.6)

1.50

(38.1)

0.75

(19.1)

0.43

(10.9)

0.28

(7.1)

2.25

(57.2)

0.48 (12.3)

1.00

(25.4)

Ss-mbv-f 6-3 w-

3/8

5.88

(149)

5.53

(140)

3.00

(76.2)

4.96

(126)

1.38

(34.9)

2.00

(50.8)

1.00

(25.4)

0.41

(10.3)

0.28

(7.1)

2.95

(74.9)

1.89 (30.2)

1.38

(34.9)
